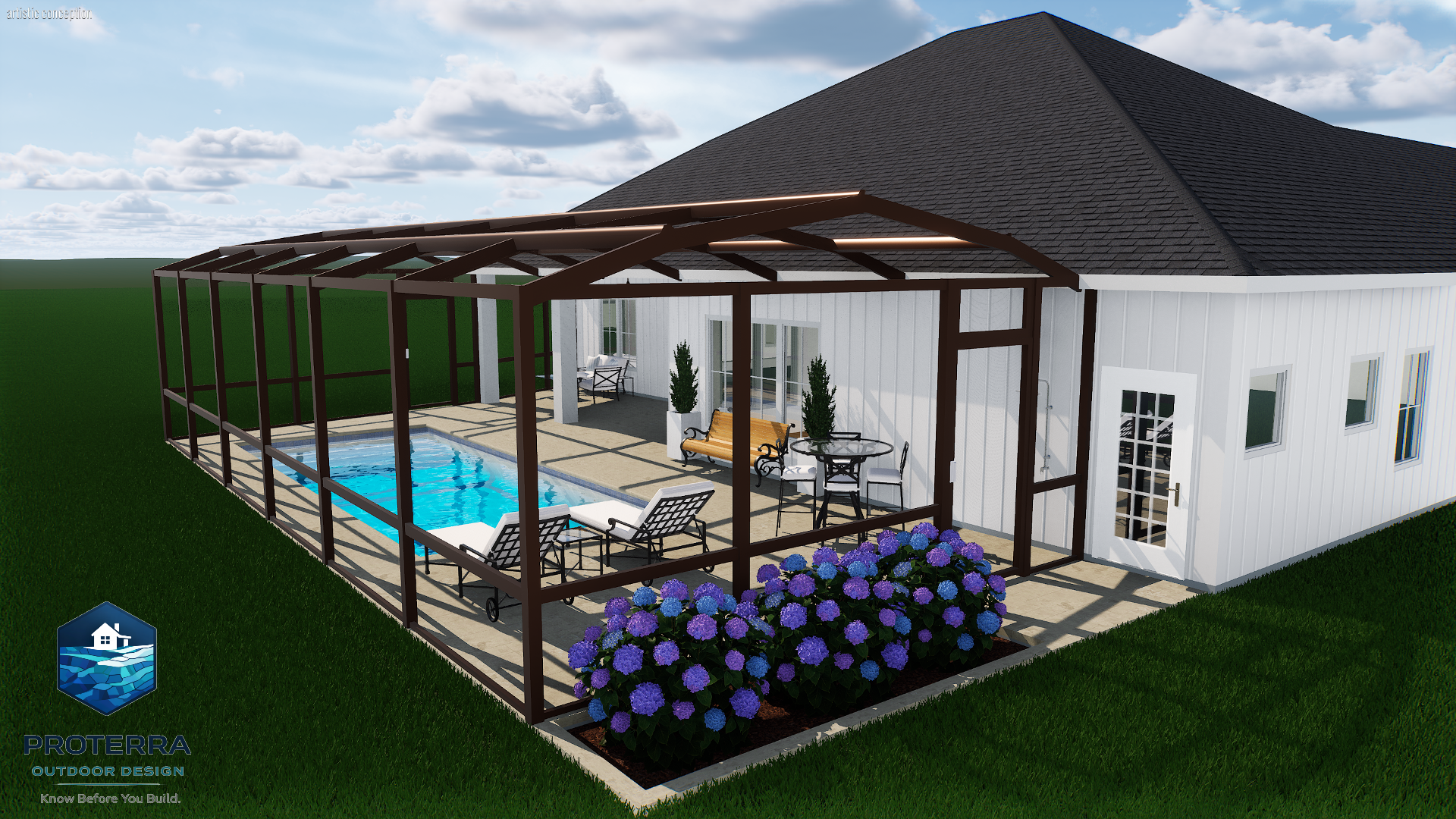

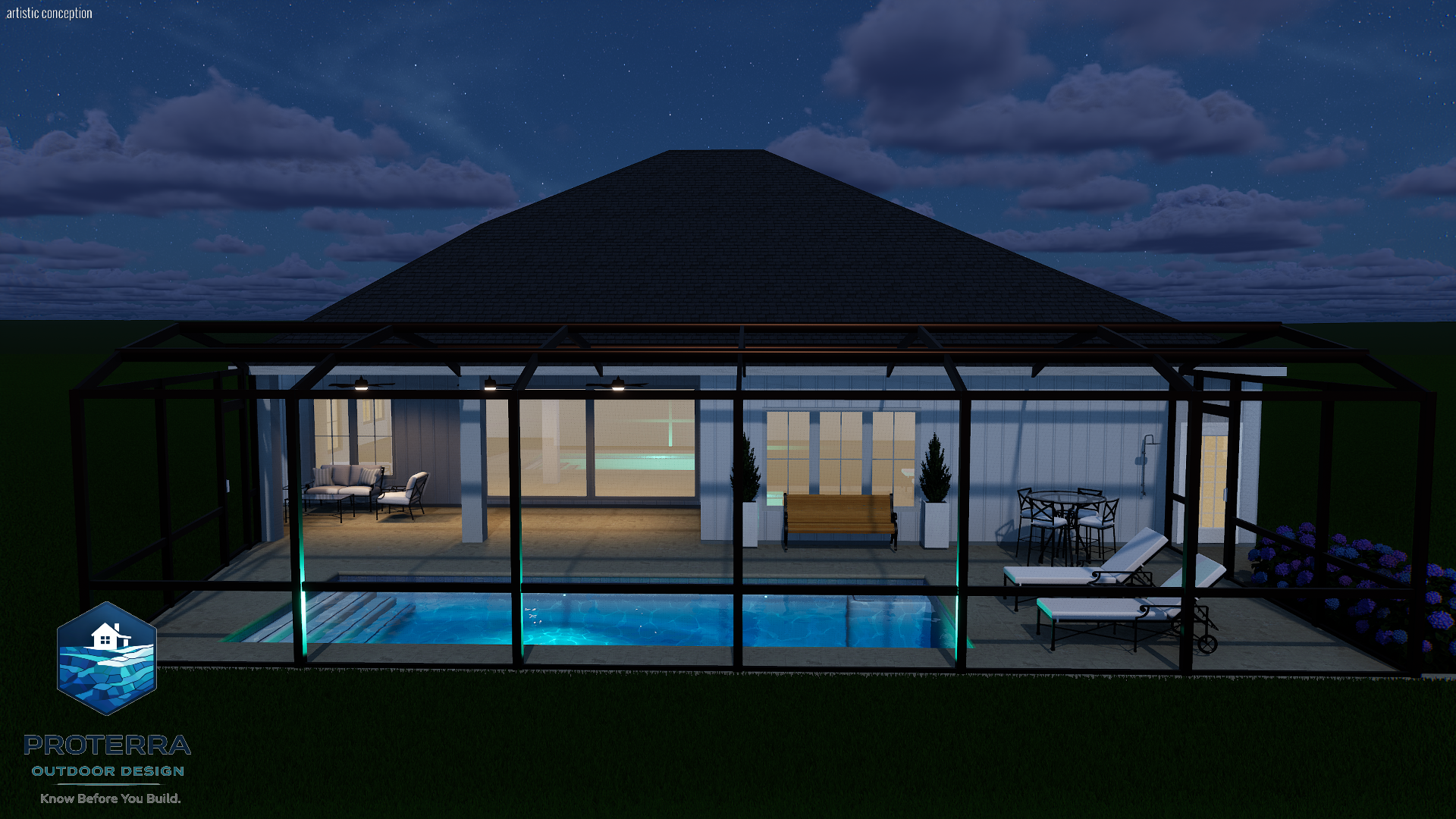

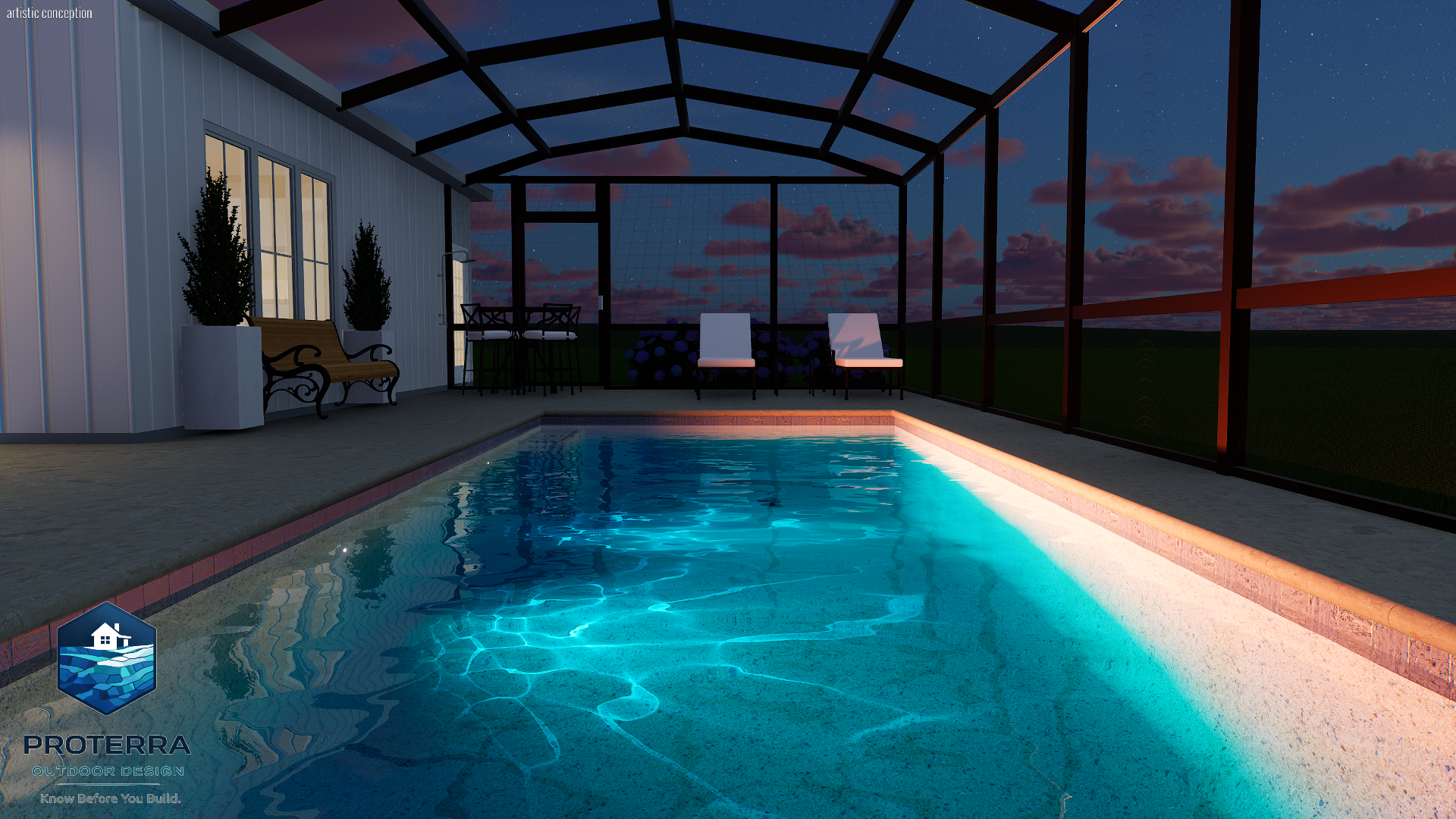

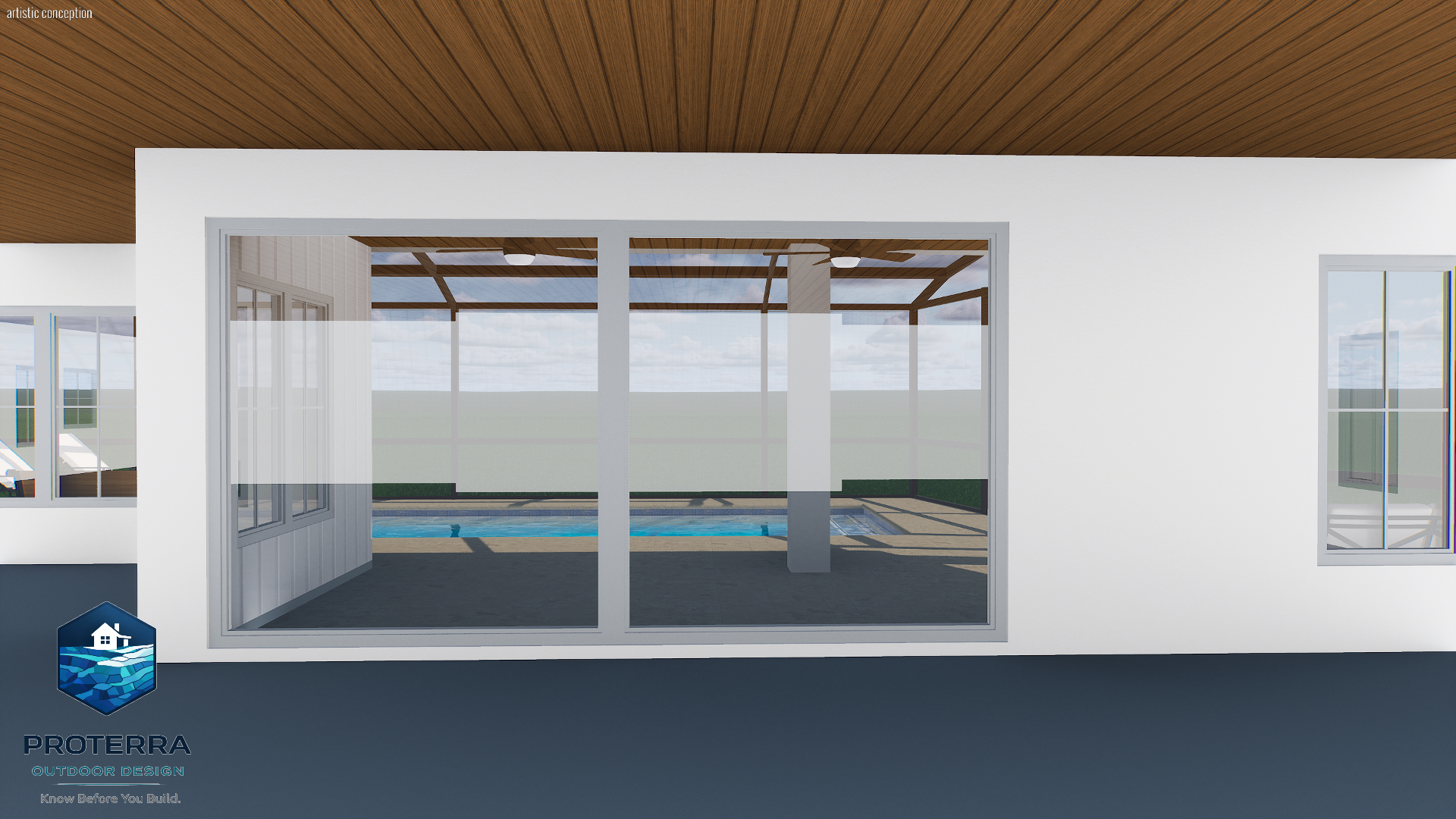

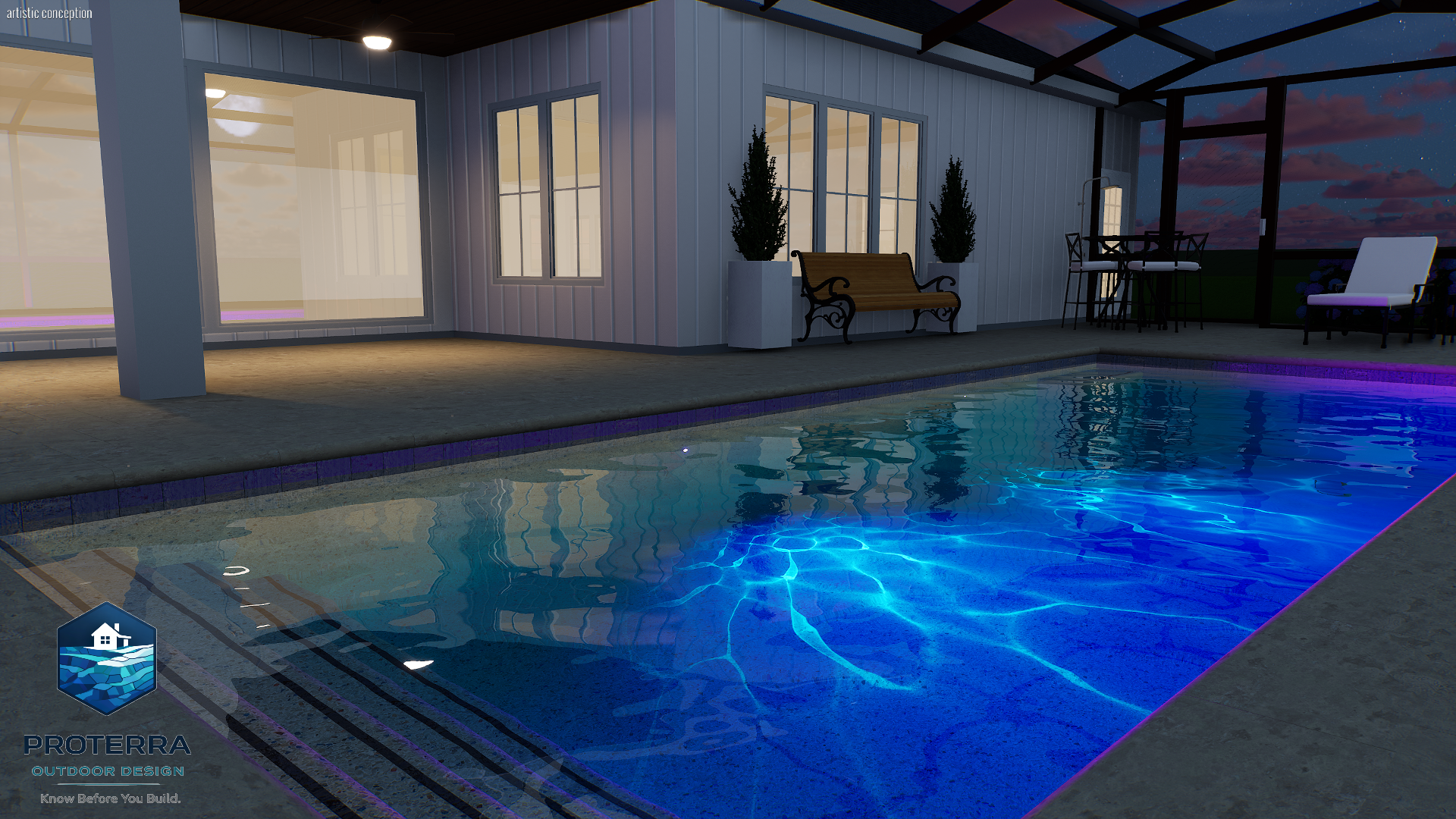

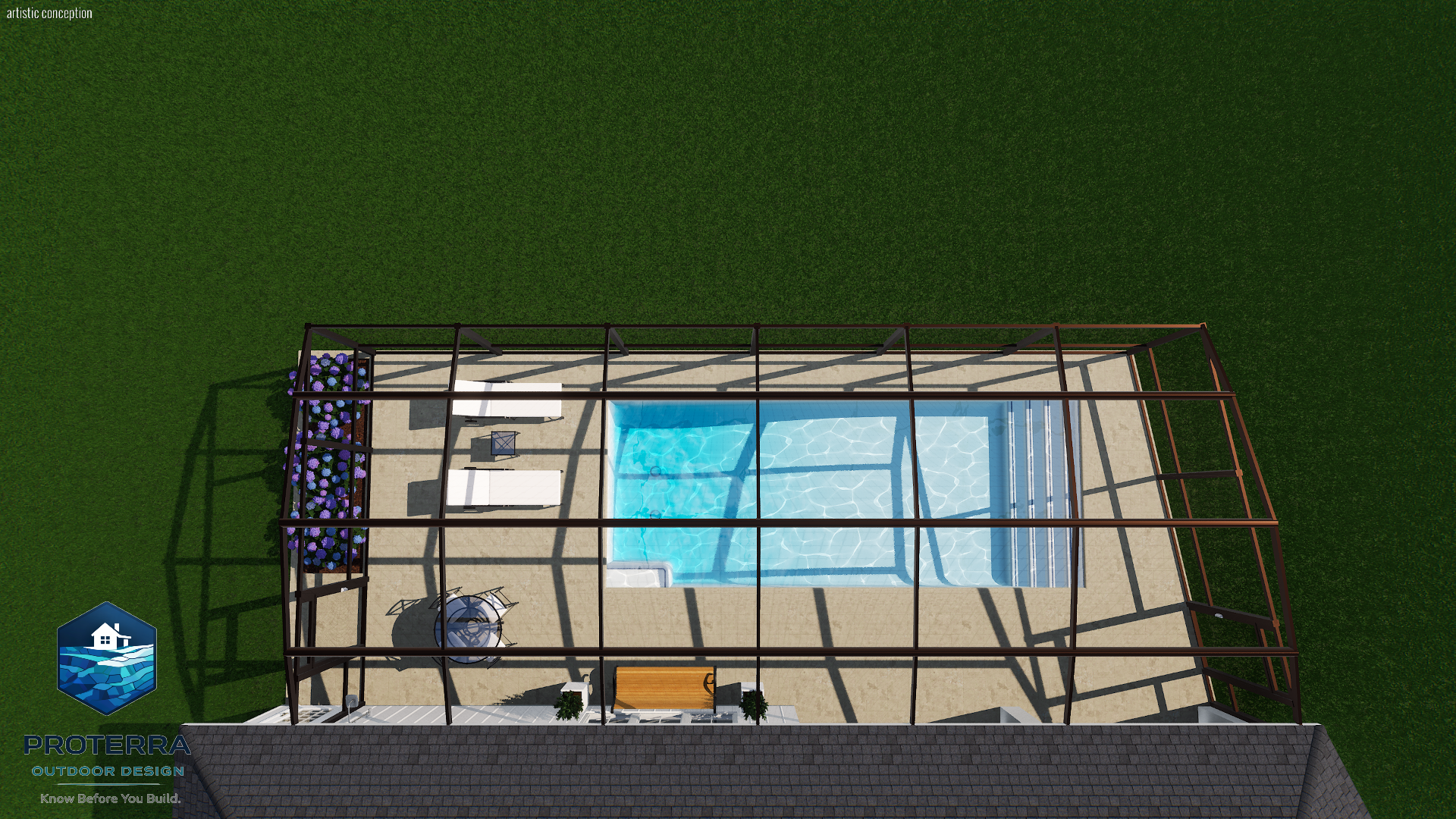

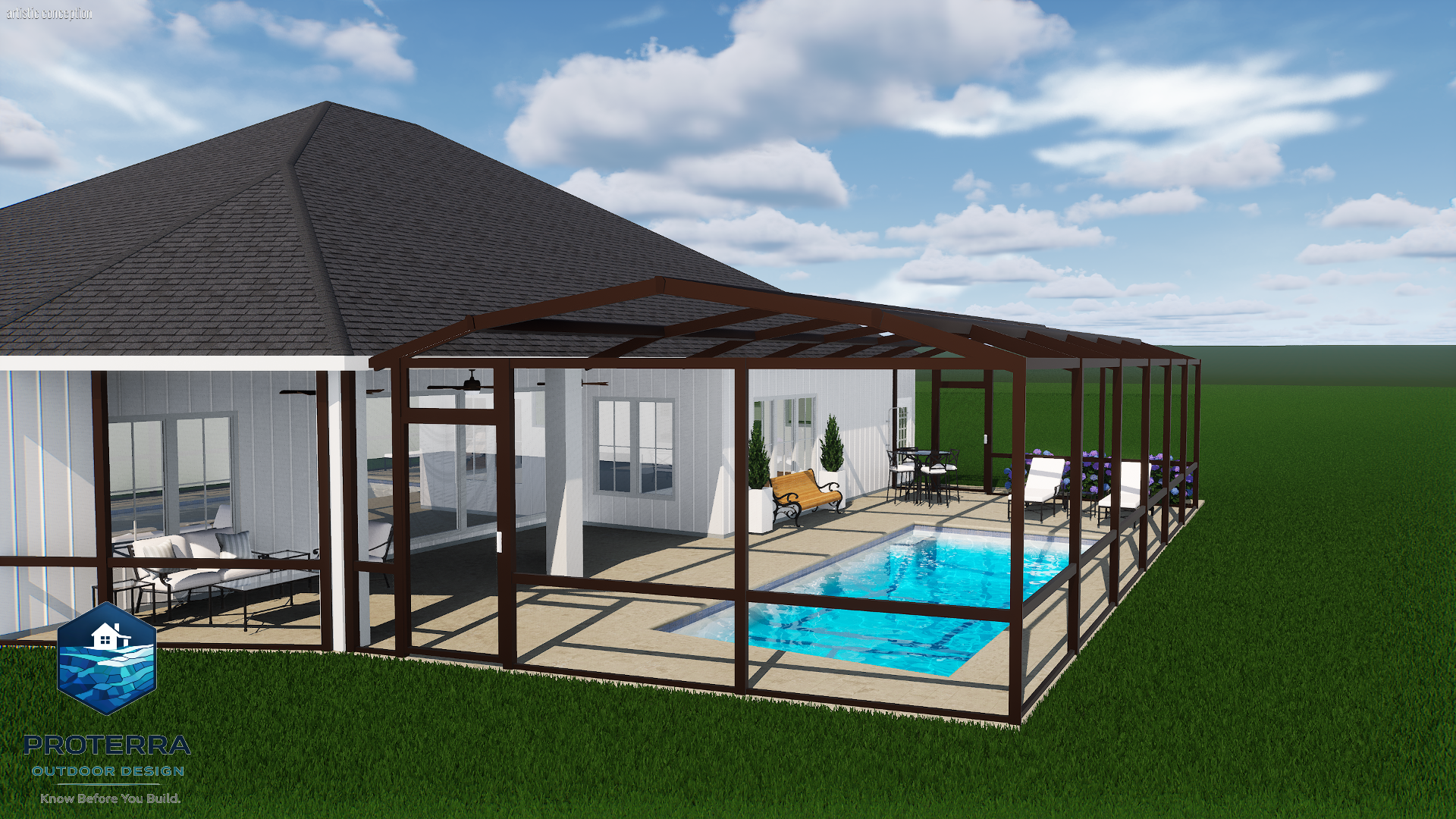

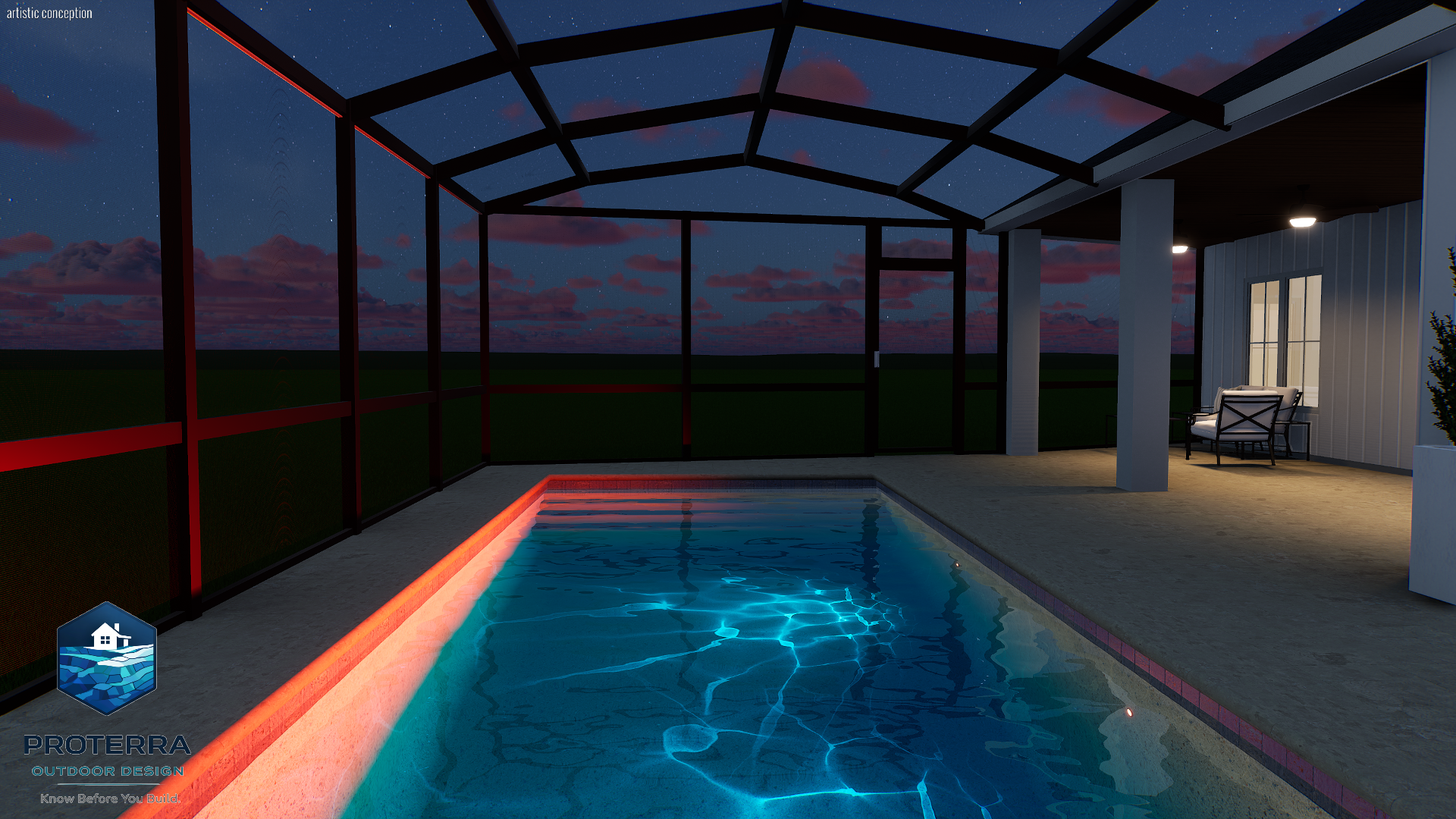

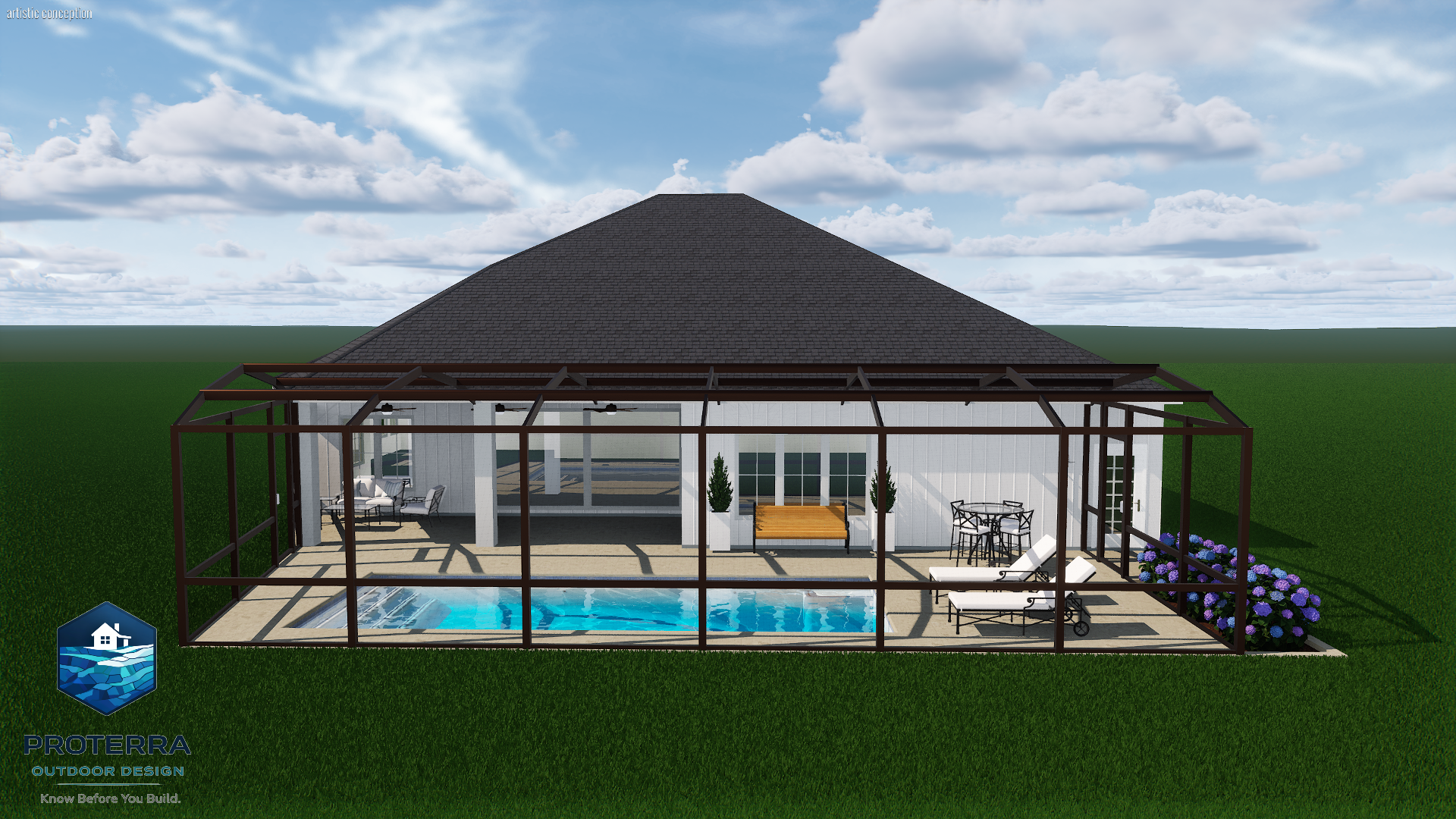

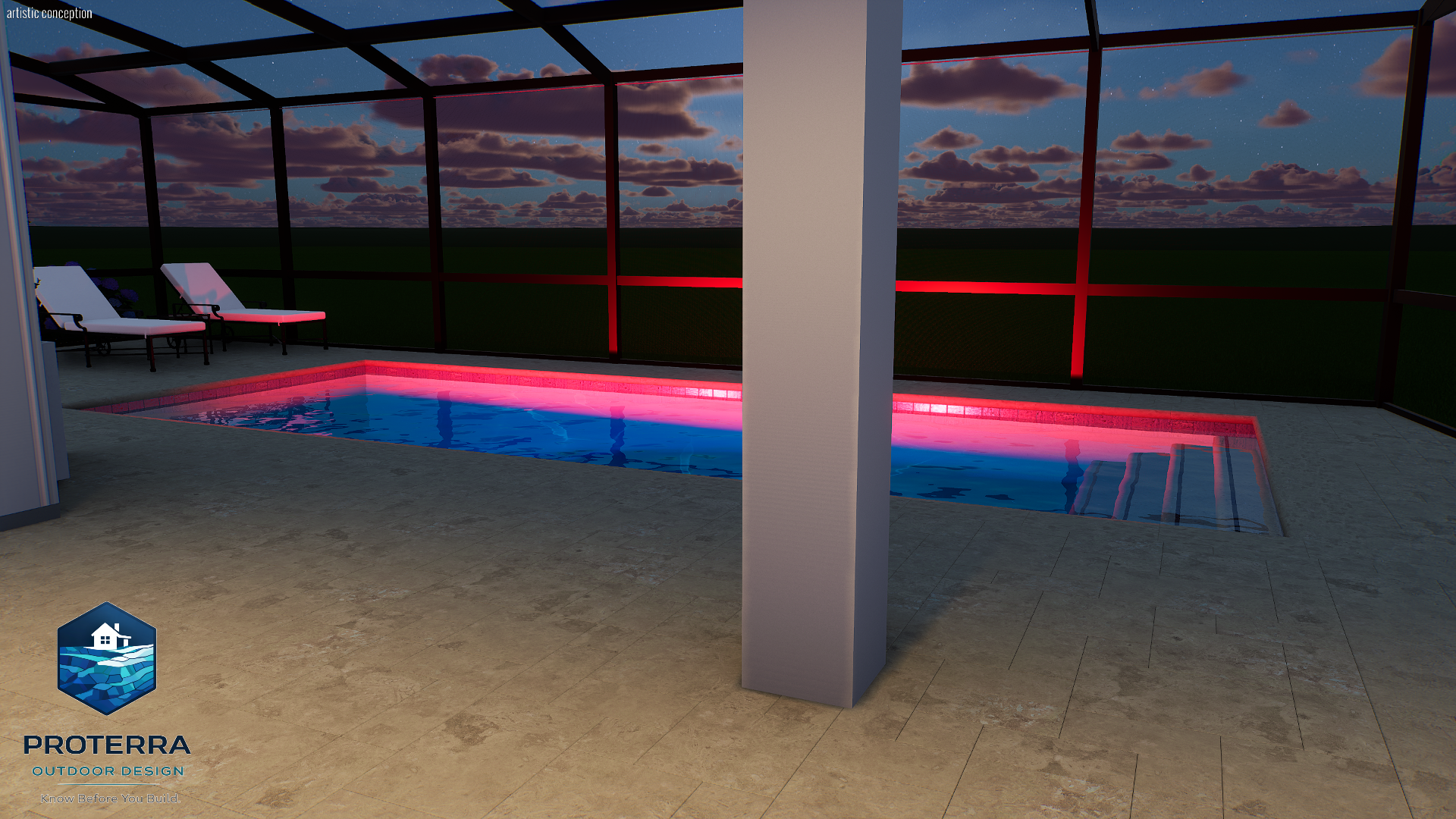

Pensacola Pool Project
A swimming pool, hardscape and lanai project designed for a future forever home.
All designs, renderings, layouts, concepts, visuals, data, and materials displayed on this landing page are the exclusive property of ProTerra Imagery and are protected under applicable U.S. copyright law, trade secret law, and intellectual property statutes.
Any use, reproduction, distribution, modification, display, or implementation of these designs—whether in whole or in part—without the express written consent of ProTerra Imagery constitutes unauthorized use and may result in civil liability, including claims for damages, injunctive relief, and attorneys’ fees, to the fullest extent permitted by lawProject Specifications
Pool Dimensions
Envelope - 12’ x 30’
Perimeter - 84’
Surface Area - 360 sq ft
Depth - 3.5’ to 6’
Volume - 10,511 Gal
Interior Surface Area - 772 sq ft
Bench - 4 Linear Feet
Steps - 12’ Grande Entry
Equipment
Hayward, Pentair or Jandy - Minimum Specs Listed
1.85 HP Variable Speed Pump
325 sq ft Cartridge Filter
Salt Cell with Automation
120,00 BTU Heat/Chill Pump

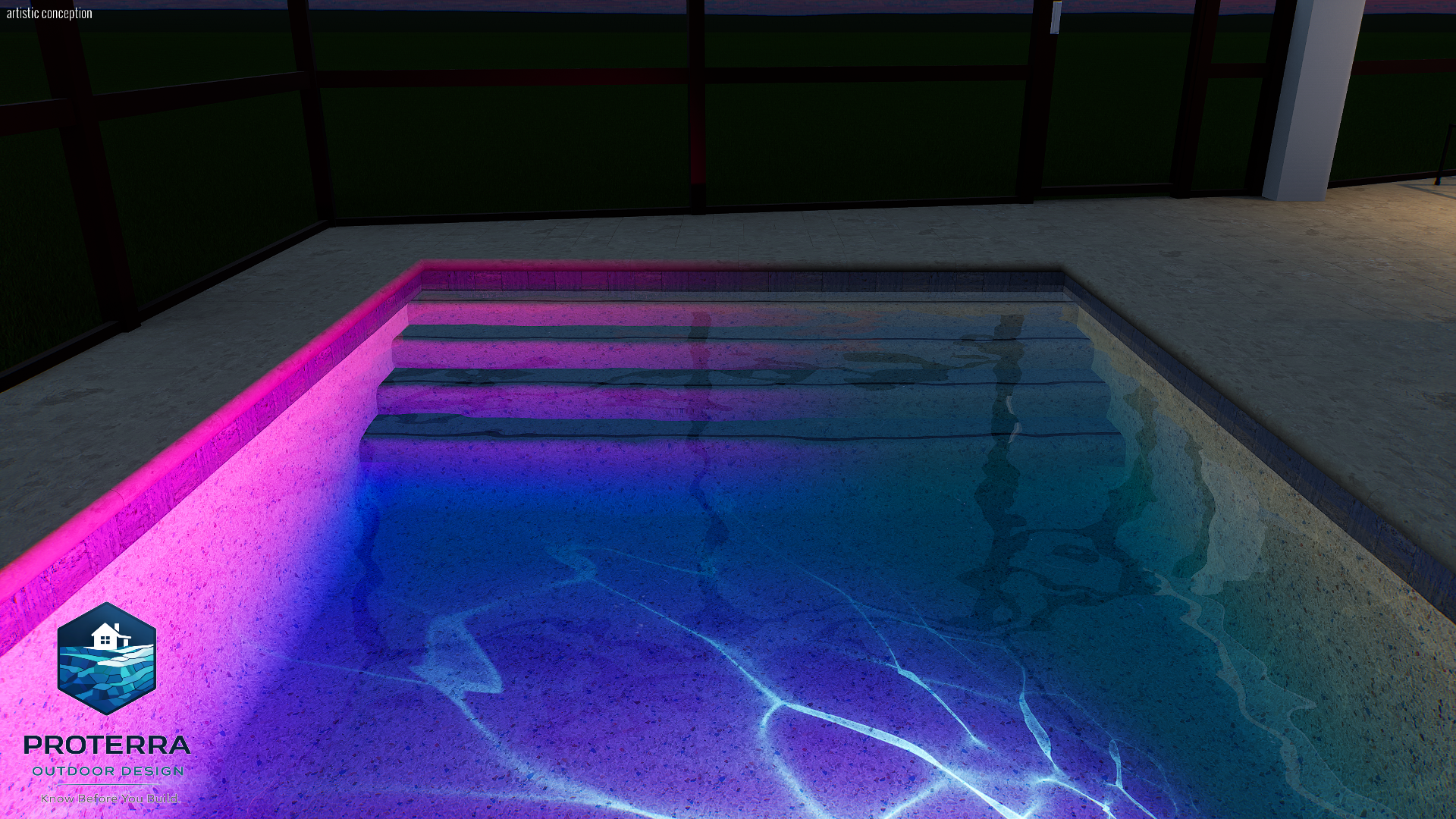

Two (2) LED Pool Lights
Circulation
2” Plumbing
Standard VGB Main Drains
6 Wall Returns
Autofill & Overflow
Two (2) Standard Skimmers
Finishes
Interior Finish - PebbleTech PebbleCrystal - Warm White
Waterline Tile - 6” Frost-Proof
Trim Tile - 2” Band on Benches and Steps (54 lnear ft)
Coping - 12” x 24” Bullnose Leathered Marble - Diana Royale
Hardscapes
Pool Deck - 700 sq ft Leathered Marbel French Pattern - Diana Royale
Enclosure Concrete Footers - 98 Linear Feet
